How to Configure an HSGQ ODI/DFP-34X-2C2 GPON ONU SFP Module with Airtel Fiber in UDM Pro

Tech Guide
• • 8 minute read

Configuring an HSGQ ODI / DFP-34X-2C2 GPON ONU SFP Module with Airtel Fiber in UDM Pro involves several steps. Follow this guide to ensure a smooth setup.

Step 1: Insert the SFP Module

Insert the HSGQ ODI / DFP-34X-2C2 GPON ONU SFP module into your router's SFP/SFP+ port.

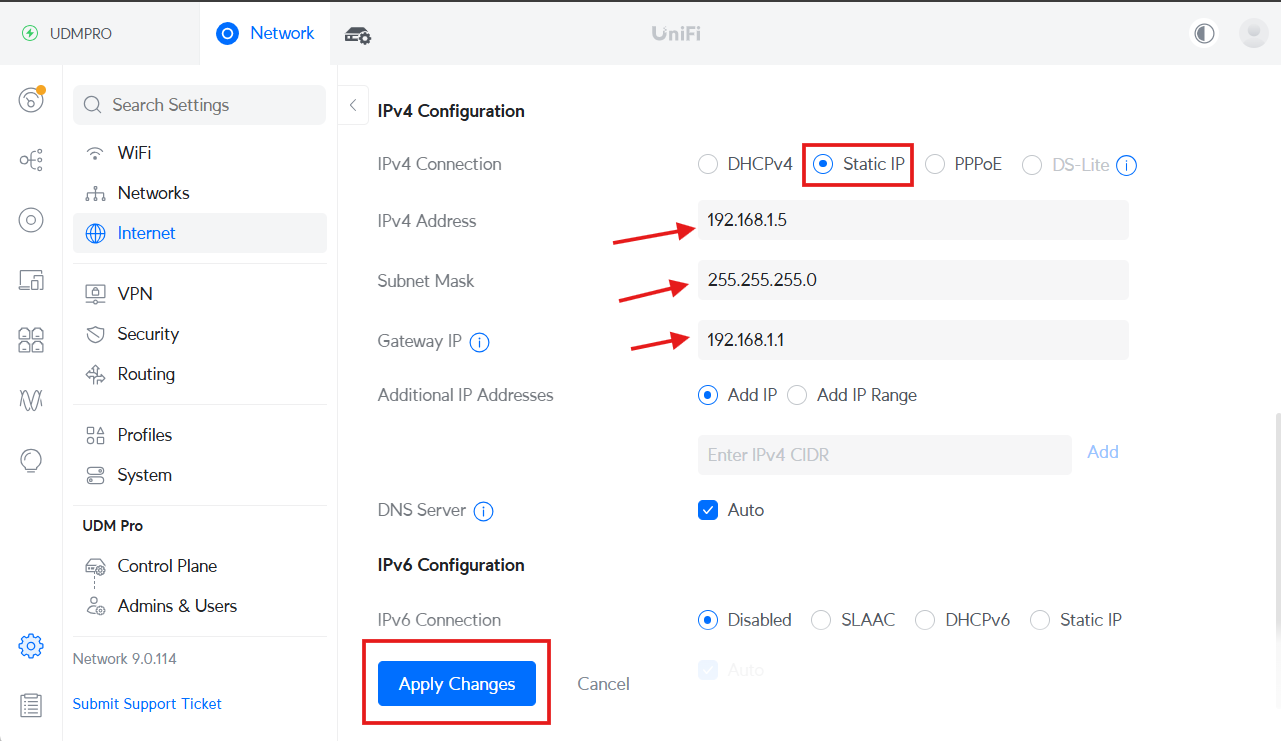

Step 2: Configure UDM Pro IP Settings to Access GPON SFP Module GUI

  1. Access your router's web UI.
  2. Navigate to Settings > Internet > Primary (WAN1) > IPv4 Configuration.
  3. Enter the IP manually within the same range as the SFP module:
  • IP Address: 192.168.1.5
  • Subnet Mask: 255.255.255.0
  • Gateway: 192.168.1.1
  1. Keep the DNS setting as Auto or enter any preferred DNS.
  2. Click Apply Changes.

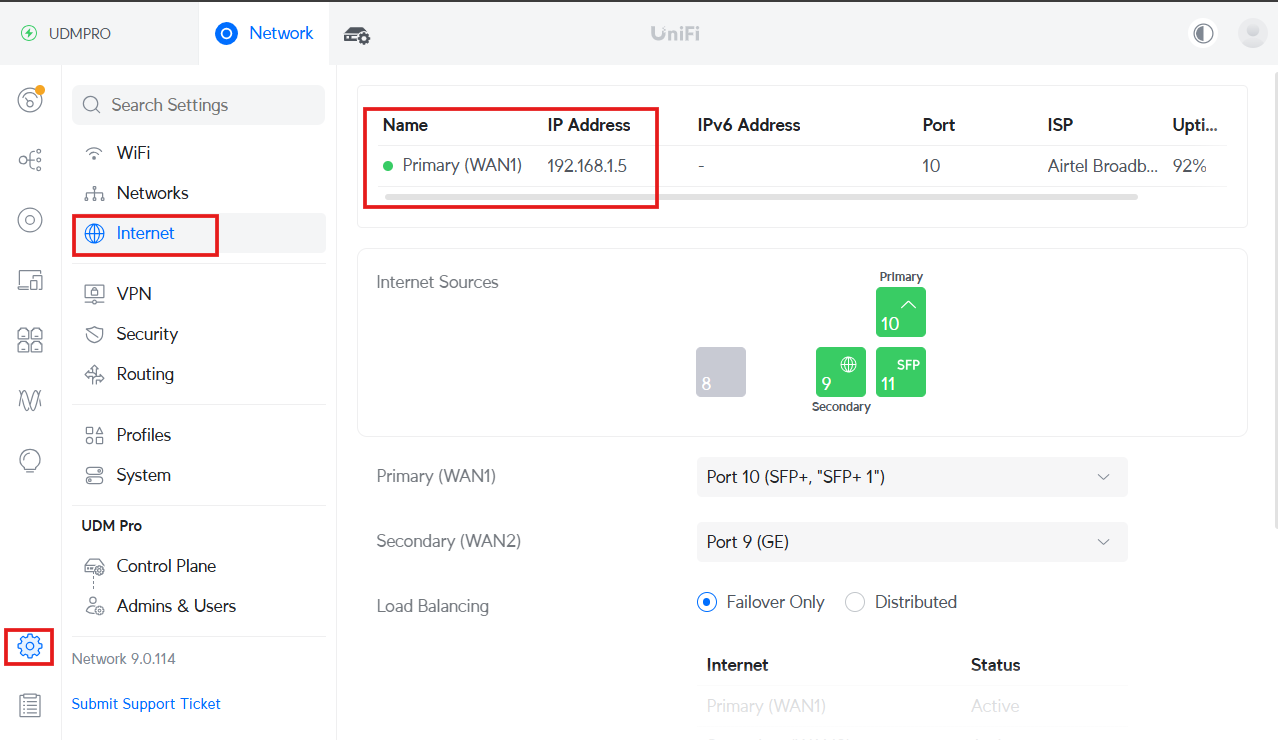

🔒 https://192.168.1.1 - UDM Pro Network Settings
Screenshot
🔒 https://192.168.1.1 - UDM Pro Network Settings
Screenshot

Step 3: Retrieve GPON Serial Number from Airtel Router

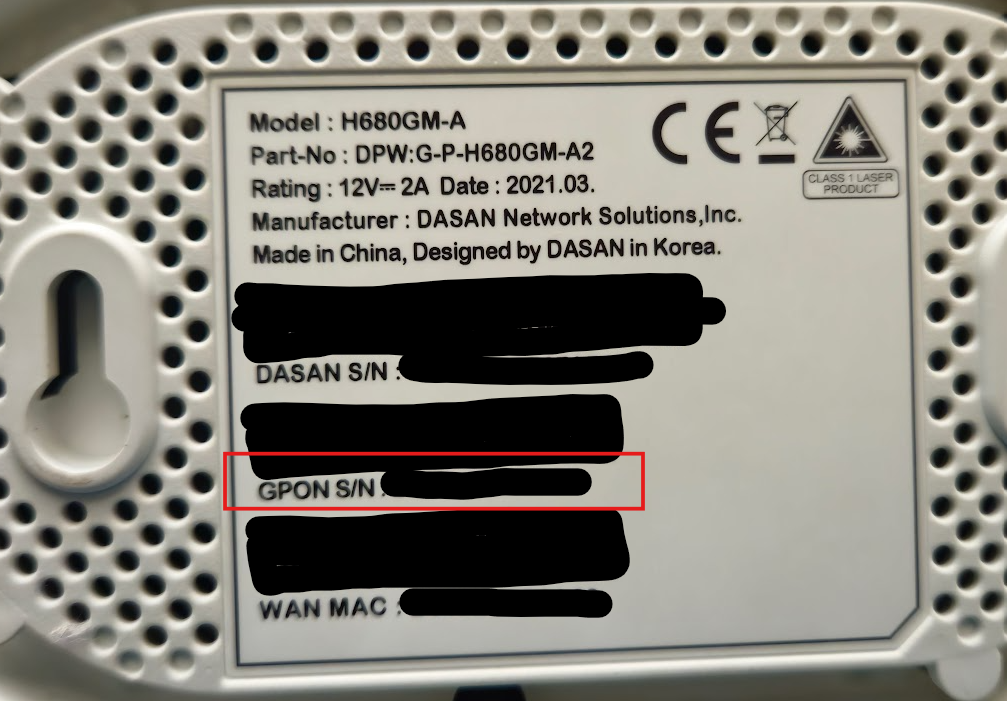

  1. Check the back of your Airtel Fiber Router (e.g., Dasan router).
  2. Locate and copy the GPON S/N.
📷 Router Label Photo - GPON Serial Number Location
Screenshot

Step 4: Access the SFP Module GUI

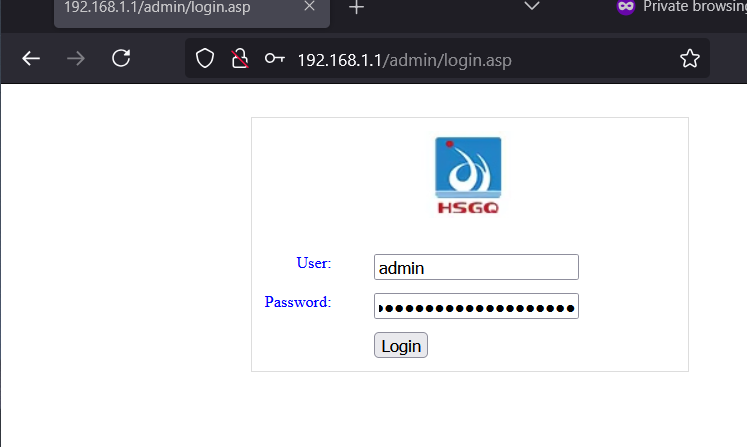

  1. Open a web browser and go to http://192.168.1.1. (Default login credentials are typically "admin" as the username and "admin" as the password)
    2. 🔒 http://192.168.1.1 - SFP Module Configuration
    Screenshot

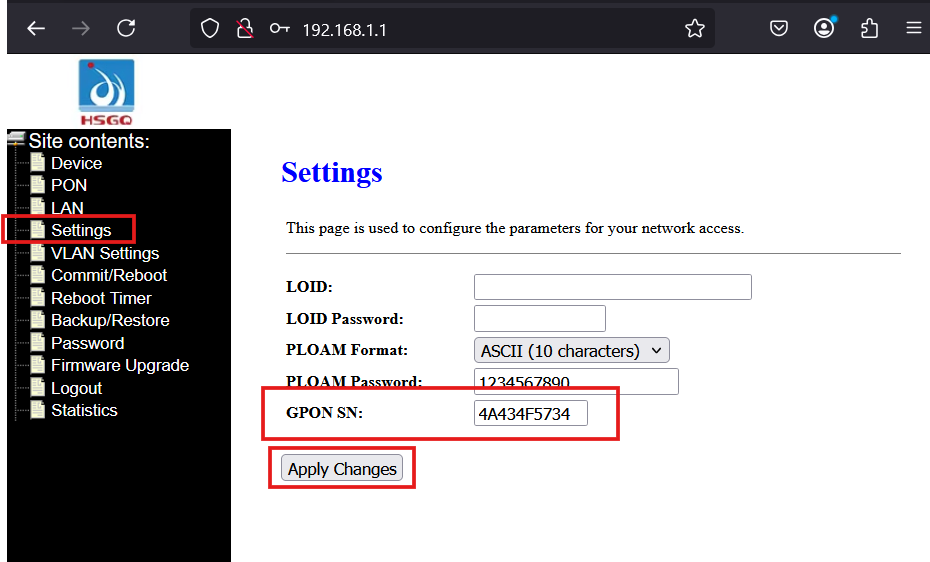

  2. Navigate to Settings.
  3. In the GPON SN field, enter the GPON serial number you copied from the Airtel router.
  4. Click Apply Changes.
🔒 http://192.168.1.1 - SFP Module Configuration
Screenshot

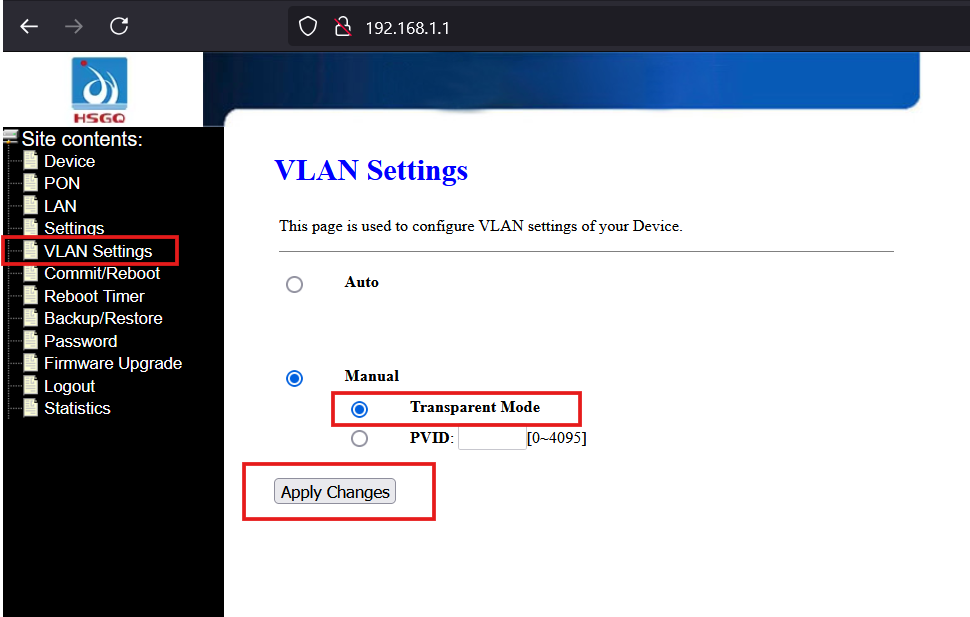

Step 5: Configure VLAN Settings

  1. Go to VLAN Settings.
  2. Select Manual.
  3. Choose Transparent Mode.
  4. Click Apply Changes.
🔒 http://192.168.1.1/vlan - VLAN Configuration
Screenshot

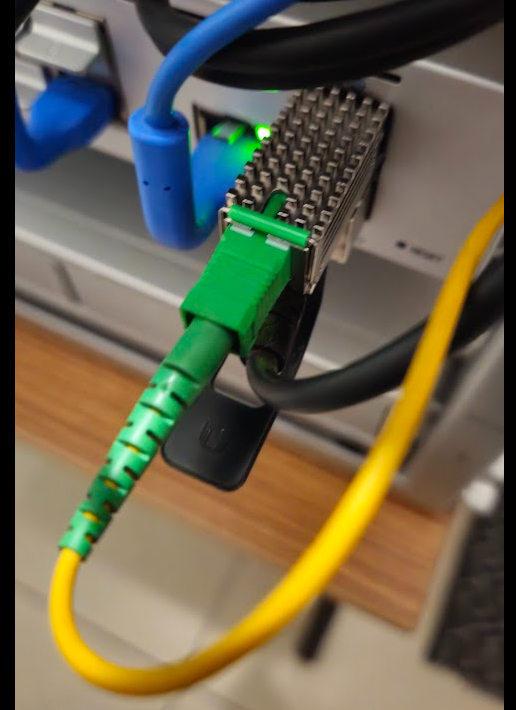

Step 6: Connect the Fiber Patch Cord

  1. Insert the fiber patch cord into the SFP module.
  2. Wait for about 2 minutes to allow the connection to stabilize.
📷 Fiber Connection Diagram
Screenshot

Step 7: Configure Internet Settings on UDM Pro

Revert the settings from Step 2 and configure for internet access:

  1. Open the UDM Pro Portal.
  2. Navigate to Settings > Internet > Primary (WAN1) > IPv4 Configuration.

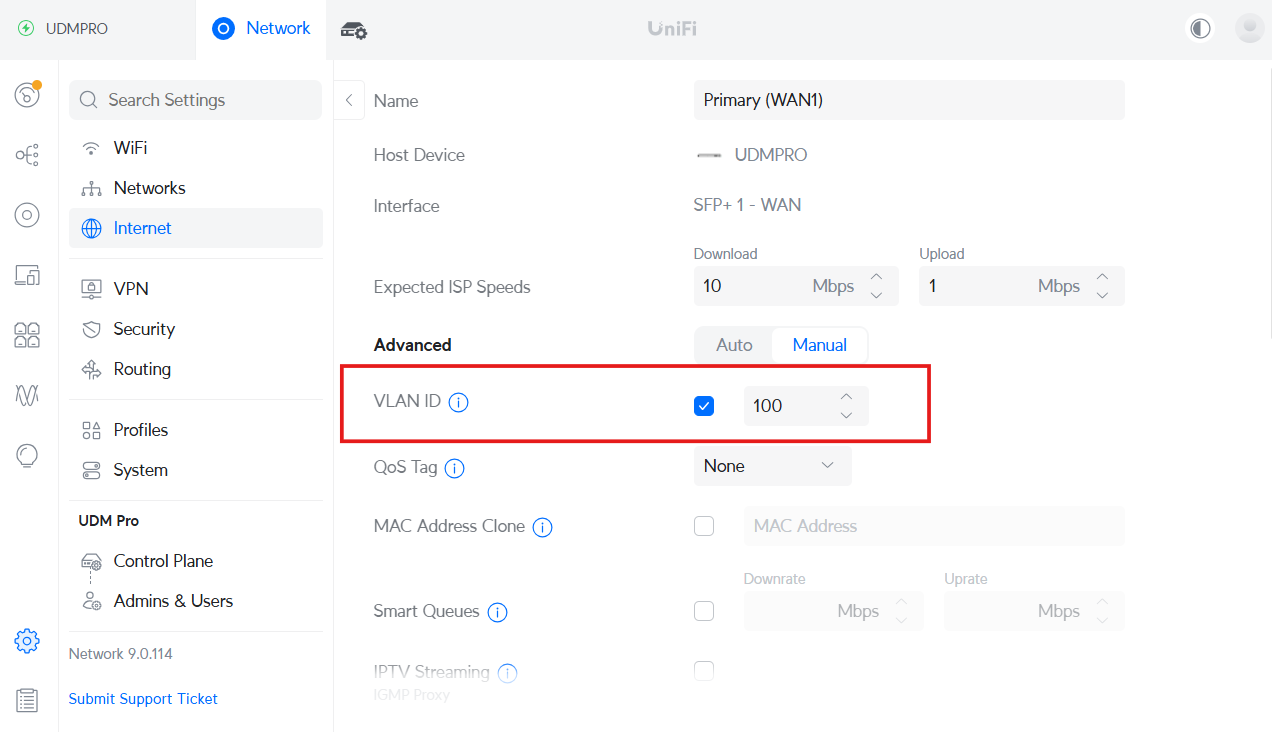

  3. Enter VLAN ID as 100 (For Airtel Xtream Fiber, the internet VLAN is 100).
    4. 🔒 https://192.168.1.1 - Final Configuration
    Screenshot
    🔒 https://192.168.1.1 - Final Configuration
    Screenshot
  4. Choose one of the following options based on your Airtel connection type:

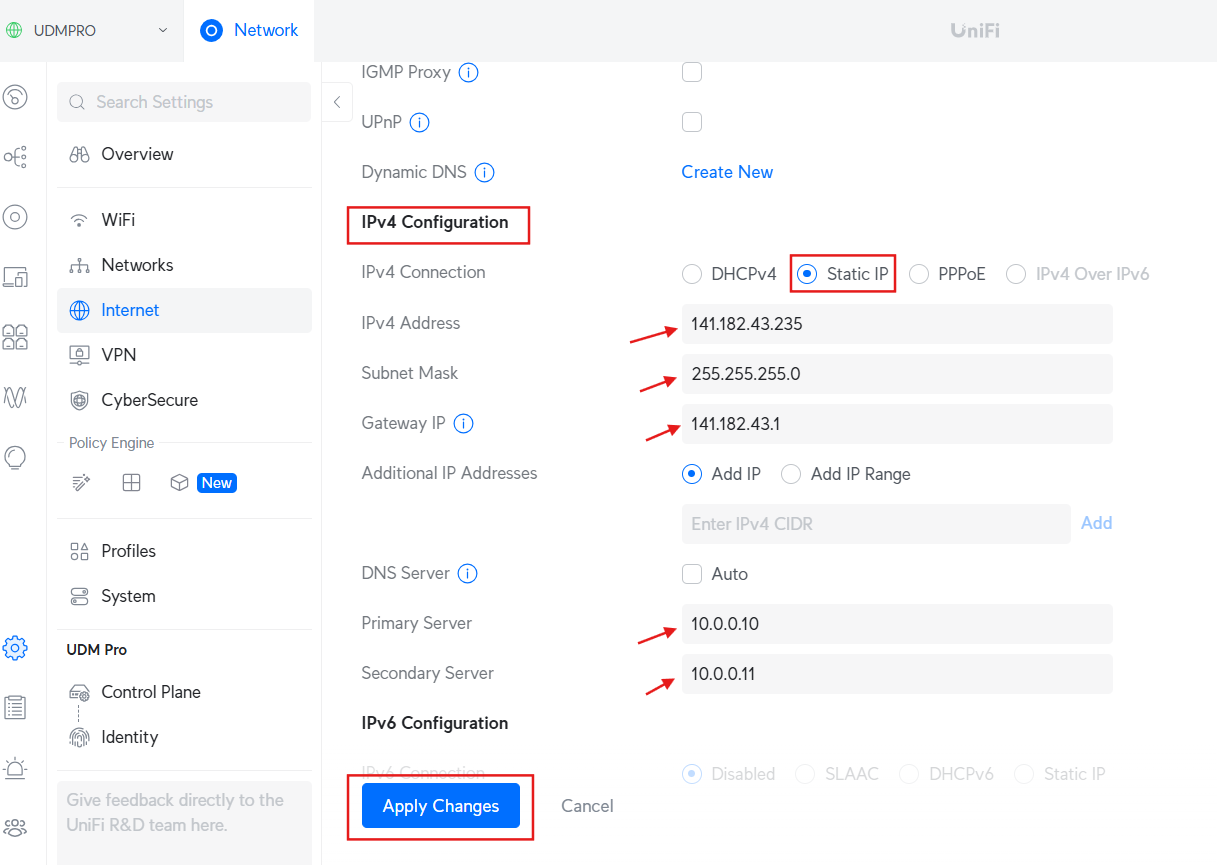

  • Static IP: Enter the IP Address, Subnet Mask, and Gateway provided by the Airtel team. (Choose this option if you have a Static IP)
🔒 https://192.168.1.1 - Final Configuration
Screenshot

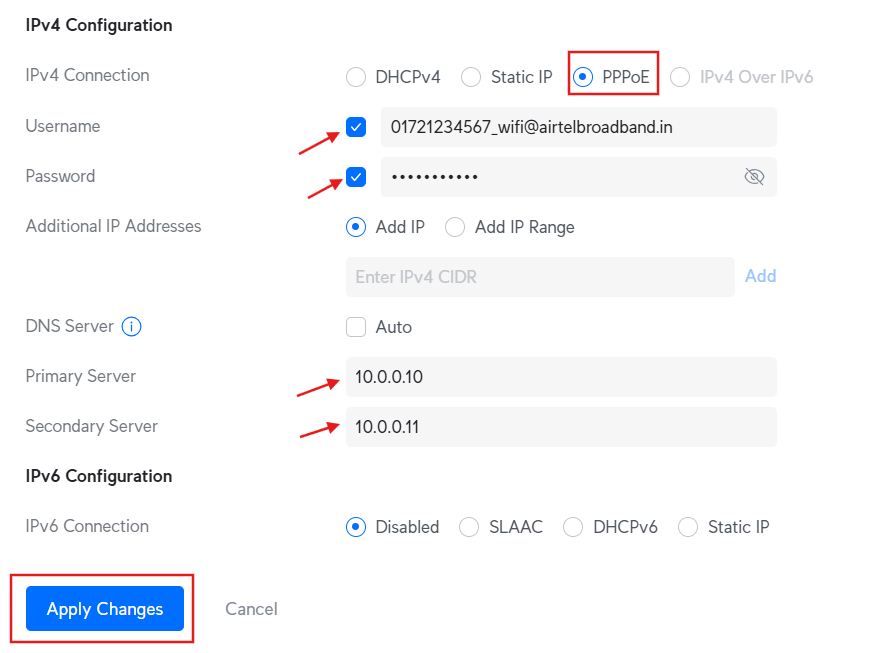

  • PPPoE: Select PPPoE and enter your username and password provided by Airtel. (Choose this option if you do not have a Static IP)
🔒 https://192.168.1.1 - Final Configuration
Screenshot
  1. Update the name server to the desired address (e.g., 1.1.1.1, 8.8.8.8, etc.)., whether you are using a static IP or the PPPoE option.
  1. Click Apply Changes.

Final Step: Enjoy Your Connection!

Your Airtel Fiber connection should now be successfully configured through the GPON ONU SFP module on your UDM Pro. If you face any issues, try rebooting your UDM Pro and SFP module.
